RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit
NEU
RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit
The Trail Finder 2 masterfully blends style with aggressive off-road performance. Designed to deliver both scale detail and powerful functionality, it features an R3 Scale Single Speed transmission, 4WD drivetrain, a rugged Bulletproof Transfer Case, and durable metal components for unmatched smoothness and control. Upgraded XVD front axles enhance durability and offer a superior steering angle compared to standard models. A testament to innovative engineering, the Trail Finder 2 stands out with its impressive looks and performance capabilities. Additionally, it offers extensive compatibility with a wide range of upgrades and performance enhancements, elevating the authenticity and user experience of this 1/10-scale off-road truck.
Realistic Billet Aluminum Ladder Frame Chassis
R3 Scale Single Speed Transmission
Center Mounted Hammer Transfer Case
Yota II Ultimate Scale Cast Axles V2 with XVD's
The Ultimate Scale Shocks (60/80mm)
Marlin Crawler Side Plastic Sliders V2
Marlin Crawler Front Winch Bumper w/Stinger V2
Rear Plastic Tube Bumper
Super Soft Flex Leaf Springs
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm (7.01")

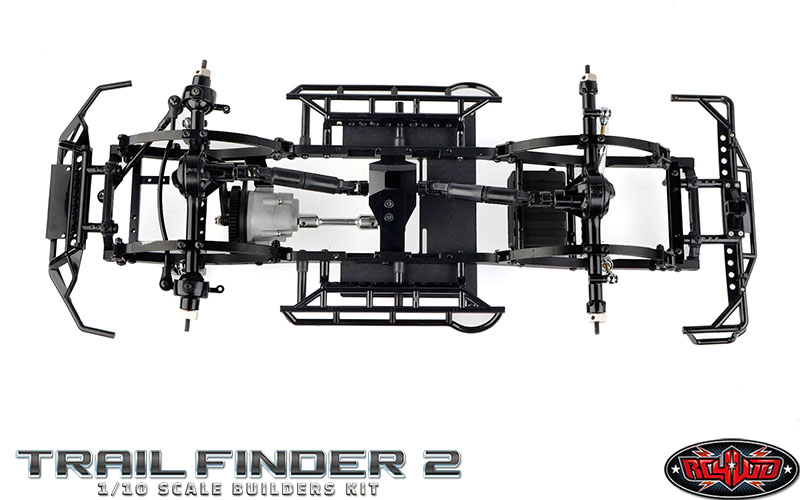

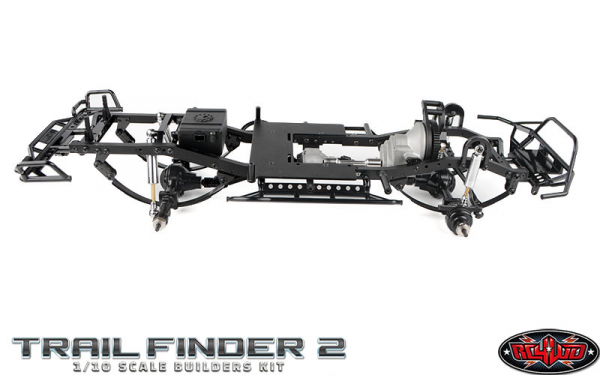

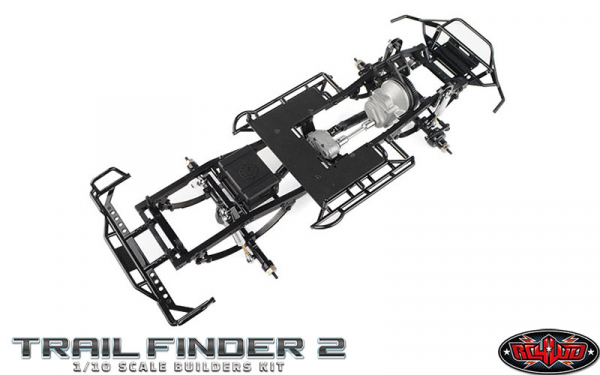

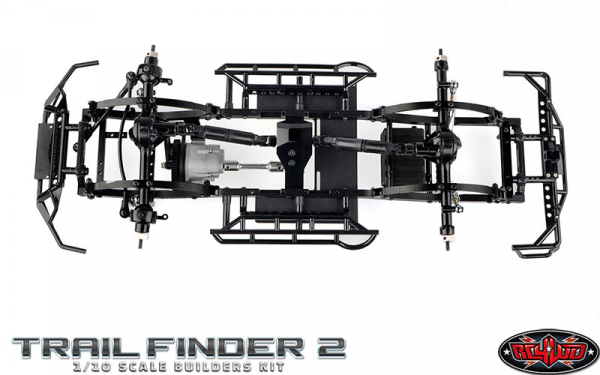

Trail Finder 2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Durable Steel Yokes
Trail Finder 2 Truck Dimensions
Wheelbase: 287mm (11.2")
Width: 196mm (7.7")
Height: 148mm(5.8")
Final Drive Ratios: 31.9:1
DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.
The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.
Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.
The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.
The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
SUSPENSION
The axles are now designed to accommodate leaf springs in two configurations: Over the axle for an off-road appearance and under the axle for a street look. This dual design eliminates the need to flip the axle, providing ease of use.
The Trail Finder 2 Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!
With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.
Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.
The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 V2 are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!
Shown with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)
Shown installed with RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257), Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065) and RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107) for example (Not Included)
Shown installed with RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092) (Painted Black), Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065) and RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107) for example (Not Included)

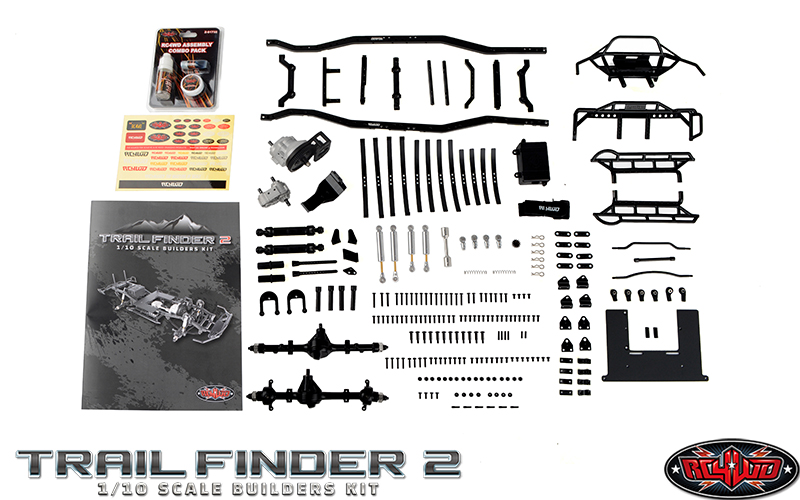

What's Included:
- 1x RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit
This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
- Motor (35t, 45t, or 55t)
- Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- 1x Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
- Charger (Consult your battery guide) Chargers
Suggested Bodies
- RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
- RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)
