Main page » REMOTE CONTROLS & SERVOS » SERVOS » Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V

Preview: Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V

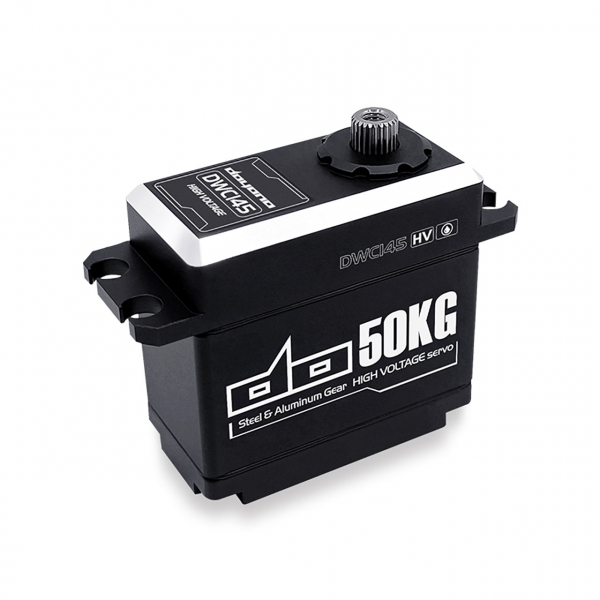

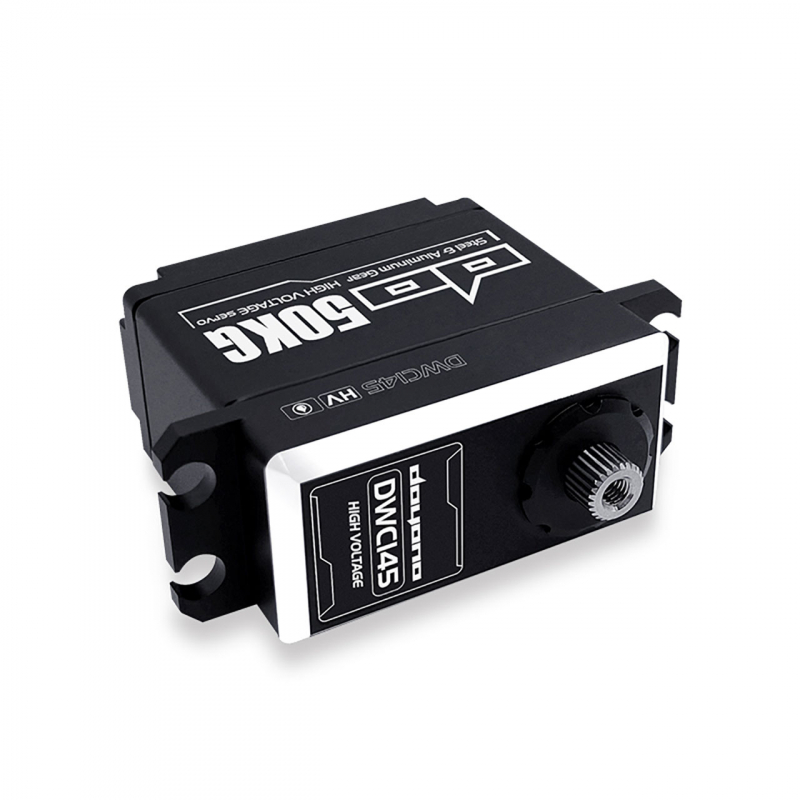

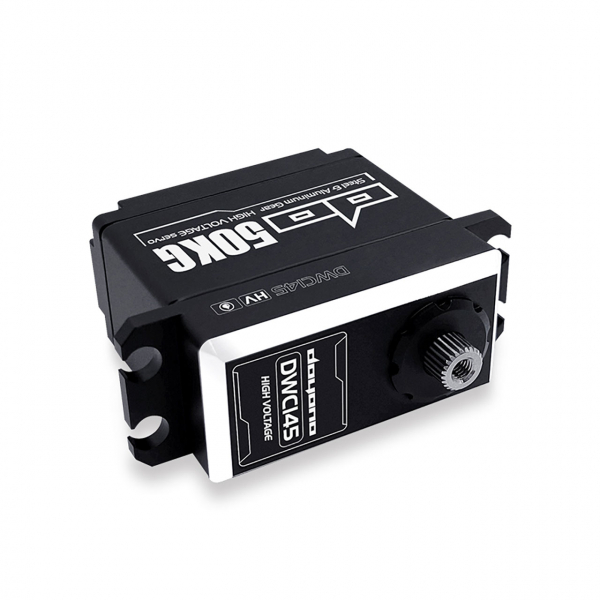

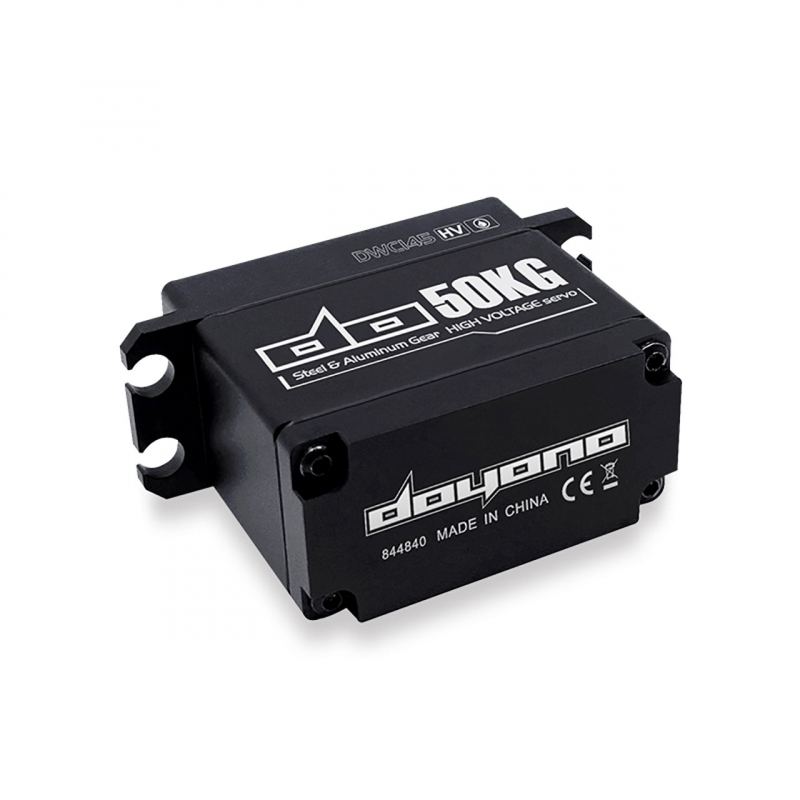

Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V

Mobile Preview: Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V

-10%

Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V

Name: Doyono Coreless Servo HV Waterproof 50.0kg/0.23sec @7.4V
SKU: DWC145
Price: 59.90 EUR
Availability: InStock

Product No.:: DWC145
Availability:: In Stock (Information)
Stock:: 1 pieces

RRP 66,90 EUR
Only 59,90 EUR

incl. 20% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 50kgcm for coreless motors has a aluminium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

High Voltage Servo
Gears made of durable aluminium and steel
Lightweight aluminum housing
Very weather resistant
Operating Voltage: 6.0-8.4V
2µs dead band, 1520µs neutral point
360mm connection wire length

Technical Specifications:

Voltage:	6.0V	7.4V
Speed:	0.25sec	0.23sec
Torque:	43.0kgcm	50.0kgcm
Motor:	Coreless
Gear:	Aluminium / Steel
Bearing:	yes, dual
Max. Travel:	~110° (bei 800: 2200µs)
Quiescent Current:	40mA @6.0V
Rated Current:	0.2A @6.0V
Blocking Current:	2.8A @6.0V
Dimensions:	40.7x20.5x38.9mm
Weight:	84.0g
Output Gear:	25T
