Absima CR4S 4-channel remote control including 1 receivers
TOP
-3%
ATTENTION: V2 version with new receivers (2020018 & 2020019) !!!

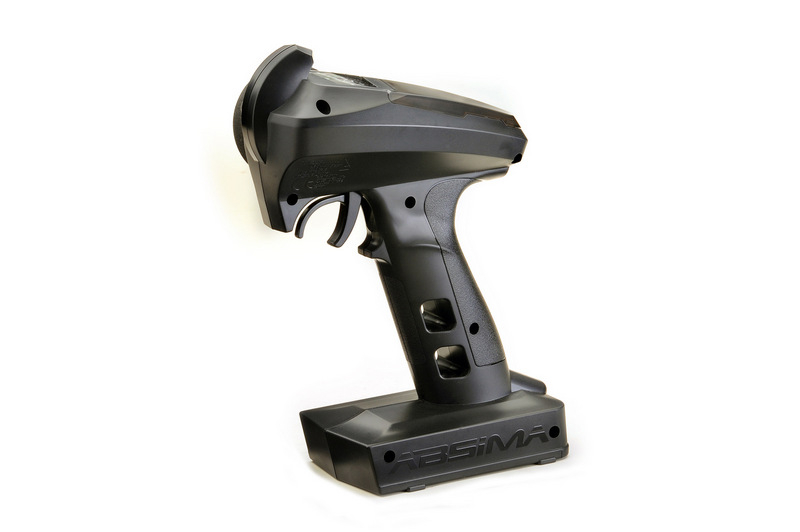

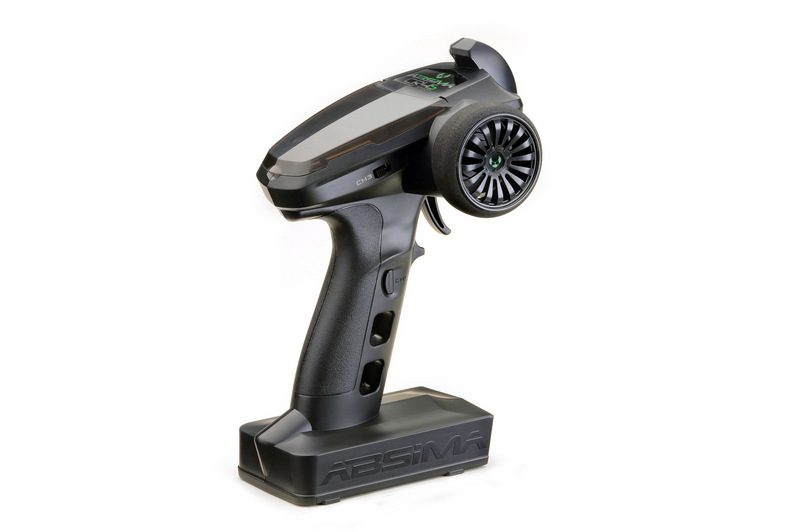

The "CR4S-V2" is a 4-channel remote control including receiver, which uses the latest frequency hopping technology from ABSIMA.
Lightweight and compact design, as well as comfortable and ergonomic shape. In addition, the remote control has a "beginner mode" and is therefore also suitable for pilots with less experience and also children.
The included receiver has a very compact design with a size of 30.2*18.0*13.0mm and fits in almost every receiver box.
FEATURES
Description of the channels (the transmitter has 4 channels which are assigned as follows):
CH1: Steering wheel
CH2: Throttle lever (Trigger)

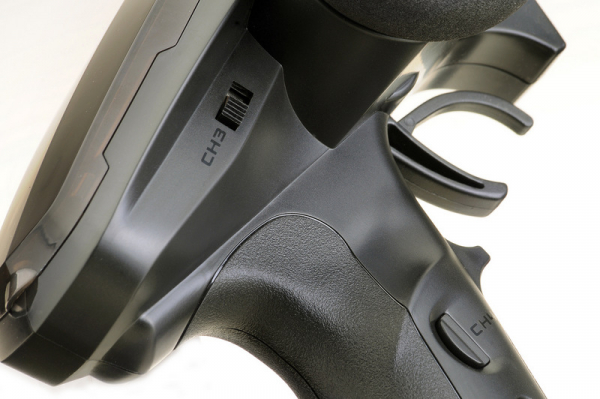

CH3: 3-position toggle switch

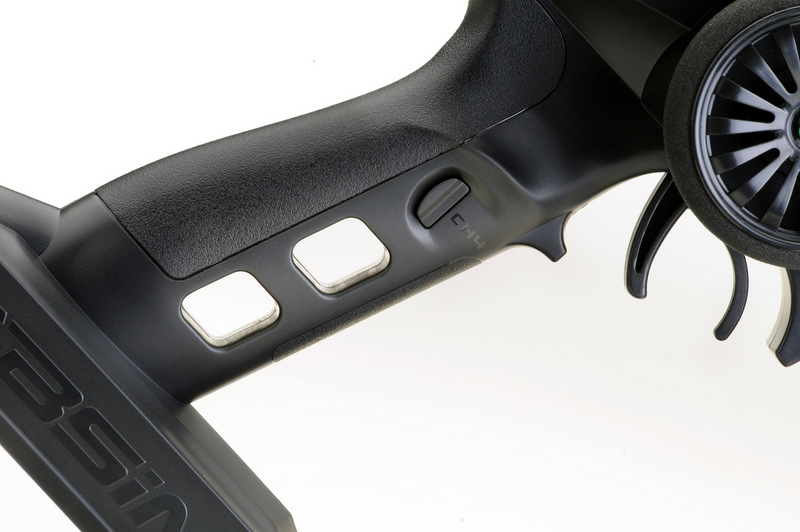

CH4: Push button

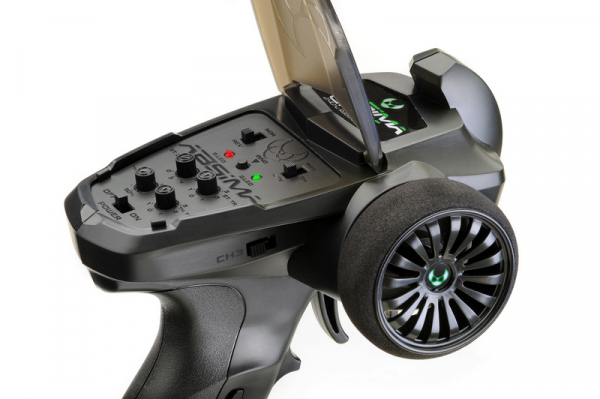

Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.
Trimming (TRIM): Adjustment of the straight run and throttle neutral position.
Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.
Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).
Beginner modus: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.
SPECIFIKATION
Radio CR4S-V2:
Channels: 4
Protocol: 2.4GHz
Distance: >150m
Battery (not included): 4*AAA 1.5 - 6V DC
Low V Warning: <4.2V (only NiMH)
Using LiPo TX battery possible: Yes (only LiPos with built-in low V protection)
Charging interface: No
Antenna type: Single antenne
Temperatur range: -10°C - +60°C
Dimension (L/W/H): 150*100*210 mm
Weight: ca. 130 g
Receiver R4WP-V2 Micro (2020019):
Channels: 4
Antenna type: external single antenna
Waterproof: Yes
Power: 3.5-8.4V
Failsafe: Yes (in connection with radio)
Temperatur range: -10°C - +60°C
Weight: 5 g
Size: 30.2*18.0*13.0 mm
SET INCLUDES
1* 4-Channel radio "CR4S-V2"
1* 4-Channel receiver
1* Antenna tube
1* Manual (DE/ENG/FR)
OPTIONAL AVAILABLE
2020018 - Receiver R4WP-V2 with built-in antenna 4140016 - TX LiPo Battery 2S/7.4V 1200mAh with LiPo Protect
