RC4WD Dual Spring Scale Black Shocks 80mm V3 (2)

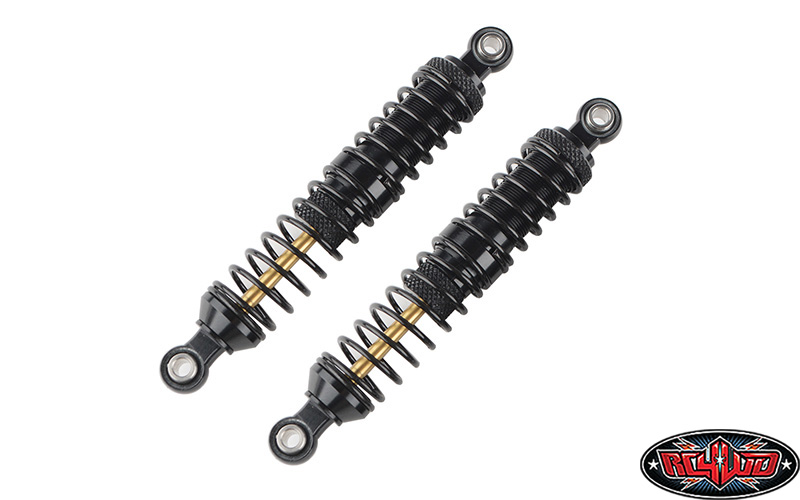

RC4WD Dual Spring Scale Black Shocks 80mm V3
Specifications:
- Machined Billet Aluminum
- Dual Spring Design
- Steel Rod End Ball
- Titanium Nitride Coated Shock Shafts
- Hole to Hole (Compressed): 2.41in / 61.1mm
- Hole to Hole (Uncompressed): 3.14in / 80mm
- Overall Length: 3.49in / 88.6mm
- Travel Length: 0.74in / 18.9mm
- Shock Body OD: 0.49in / 12.5mm
- Shaft OD: 0.11in / 3.00mm
- Each Shock Weighs: 0.57oz / 16.2g

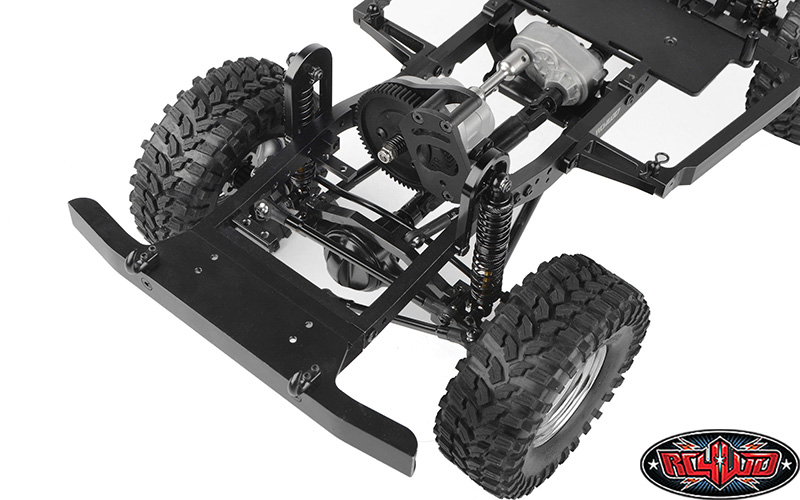

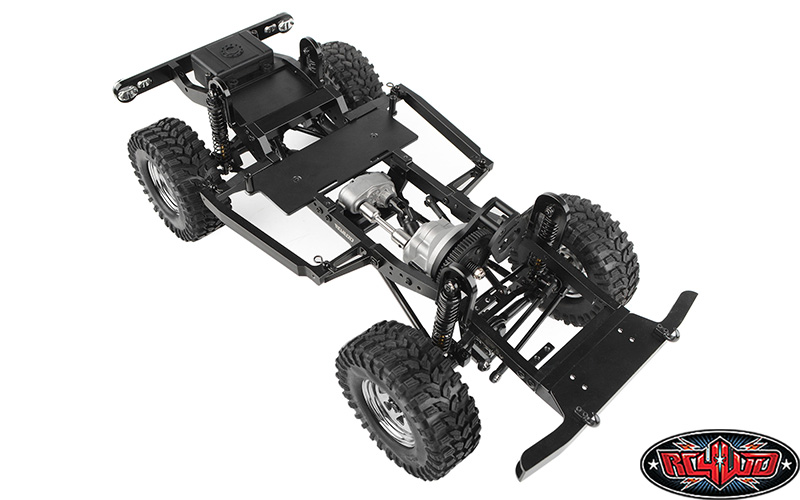

Shown installed on the chassis of RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0072) for example (Not Included)

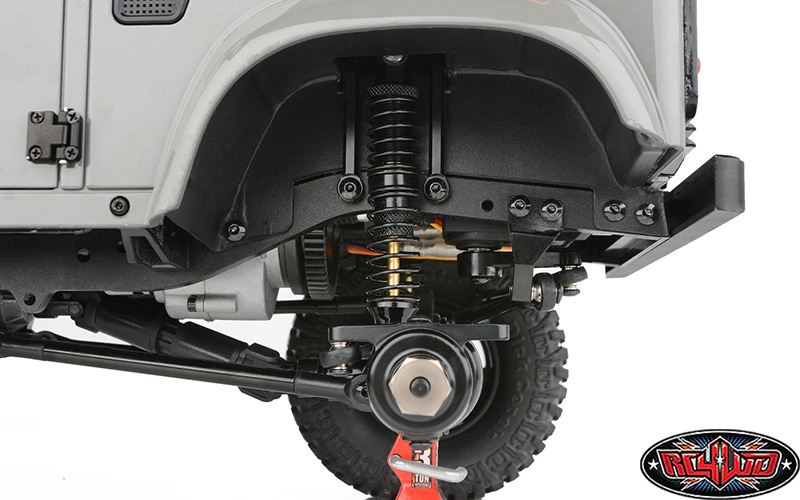

Shown installed on RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)
What's Included:
- 2x RC4WD Dual Spring Scale Black Shocks 80mm V3
Replacement Parts:
- RC4WD Internal Spring Small Shock Rebuild Kit (Z-S0244)
- Center Spring Retainer for Dual Spring Ver 2 Shocks
Notes:
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- When installing on Axial SCX10-3 please use a 5mm Black Spacer (Z-S0821) on the shock tower.
