RC4WD Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo 47kg/7.4V

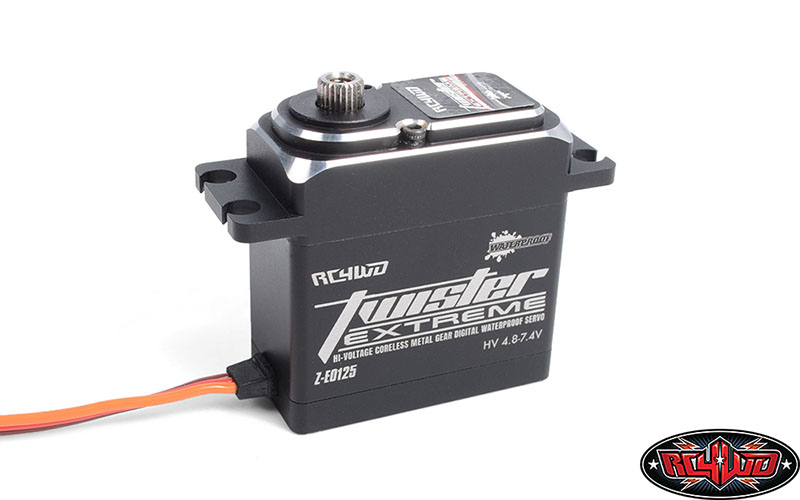

Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo
Specifications:
- Dimensions: 1.57*0.78*1.65in / 40*20*42mm
- Weight: 2.97oz / 84.3g
- Speed: 0.10sec/60° (@6.0V)
- Stall Torque: 528oz·in / 38kg·cm (@6.0V)
- Speed: 0.09sec/60° (@7.4V)
- Stall Torque: 651oz·in / 47kg·cm (@7.4V)
- Stall Current: 4-5A (@6.0V), 5-6A (@7.4V)
- Idle Current: 60mA (@6.0V), 70mA (@7.4V)
- Operating Voltage: 4.8-7.4V
- Control Method: PWM
- Pulse Width: 500~2500 µsec
- Servo Wire Length: 12.6in / 320mm
- Center Case: Aluminum
- 25t Spline Servo Arm
- Servo-motor Lock-rotor Protection
- High Efficiency, Low Power Consumption
- Metal Gears Ensure Long Life and Durability
- Waterproof

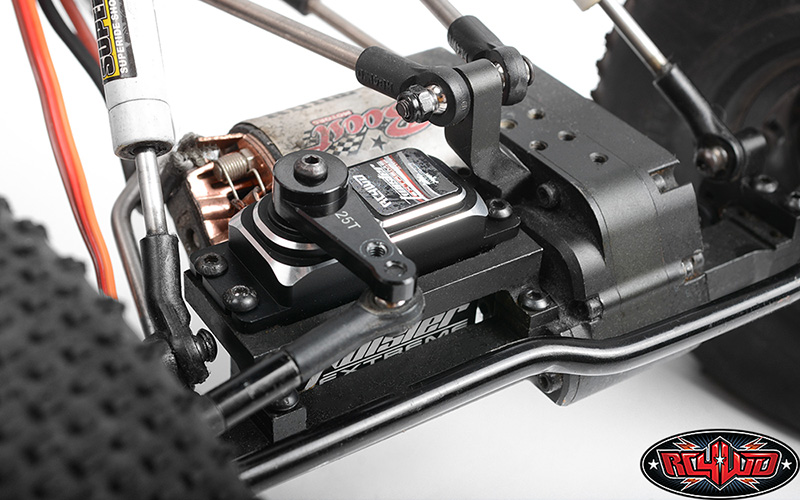

Shown installed on RC4WD Bully II MOA RTR Competition Crawler (Z-RTR0027) for example (Not Included)
Shown installed on RC4WD Gelande II RTR for example (Not Included)

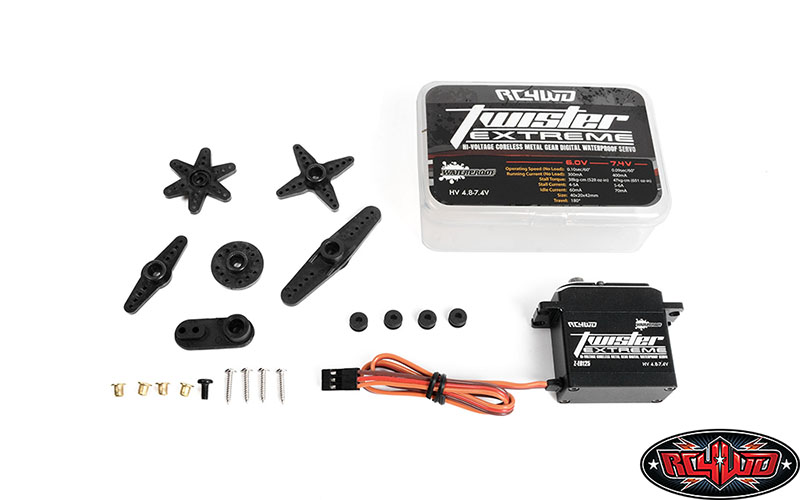

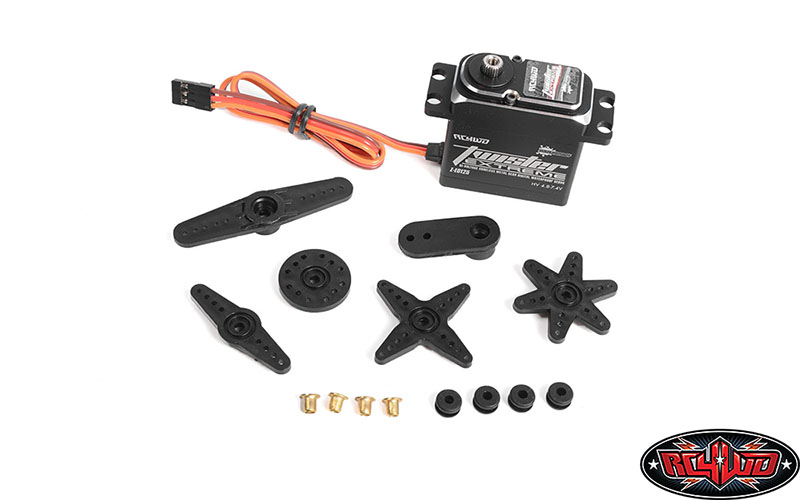

What's Included:
- 1x Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo
- 6x Servo Arms
- 4x Brass Mount Bushings
- 4x Rubber Mounting Tabs
- 4x M2.3 x 10mm Cross Head Cap Self Tapping Screws (Silver)
- 1x M3 x 6mm Cross Head Cap Screws (Black)
