Description:

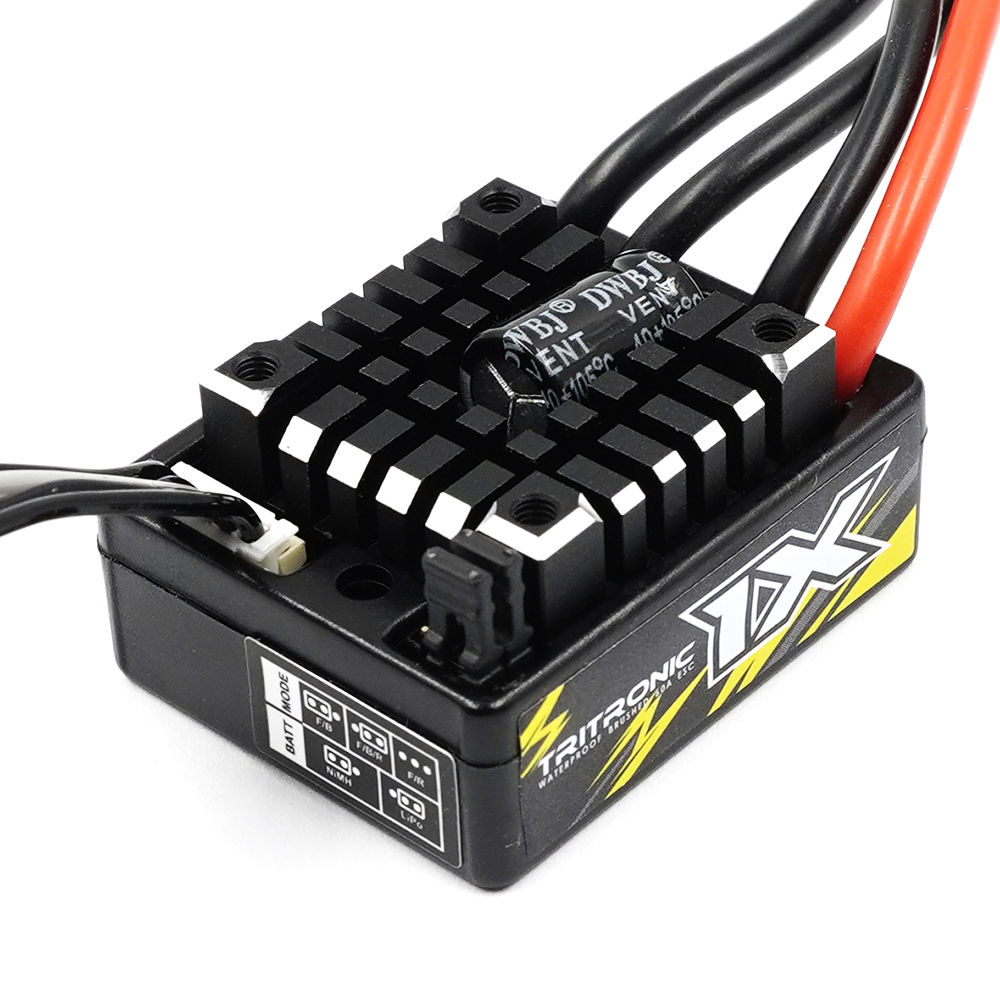

Aluminum heatsink brushed ESC with a minimal footprint designed for crawlers! Easy adjust settings switching between drive modes and battery voltage cutoff with simple jumper plugs located at the front of the ESC.

Feature:

• For: 1/10: Touring Car ( Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank )
• Water-proof and dust-proof, suitable for all-weather condition races.
• Small size with built-in capacitor module.
• Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• Easy to set the ESC parameters with jumpers.
• Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
• Aluminium Black Heat Sink

Specification:

• Fwd. Cont. / Peak Current: 60A /360A
• Rev. Cont. / Peak Current: 30A /180A
• Voltage Range: 2-3S Lipo or 5-9 NiMH
• 2S Lipo or 6 NiMH-1/10 Touring Buggy Crawler Short Course Truck : 540/ 550 Motor ≥ 12T Or RPM<30000
• 3S Lipo or 9 NiMH-1/10 Buggy Crawler Short Course Truck : 540/550 Motor ≥ 35T Or RPM< 20000 (Suggest additional capacitor when use 3S lipo battery)
• Resistance: Fwd 0.001£[, Rev 0.002£[
• BEC Output: 3A/6V (Linear Mode)
• PWM Frequency: 1KHz
• Dimension : 36.5*32*18mm
• Weight: : 39g
• Cooling Fan: Without cooling fan

Include:

• Tritronic 1X ESC (1 pc)
• Manual
