Preiswertes
Universal-Ladegerät mit integriertem Balancer und hohem Ladestrom von
bis zu 5A. Entladefunktion 1A. PC-Anschlussmöglichkeit, blau beleuchtetes LCD Display,
ladbare
Akkutypen NiMH/NiCd/Li-Ion/Li-Po/Li-Fe
Inkl. Balancer

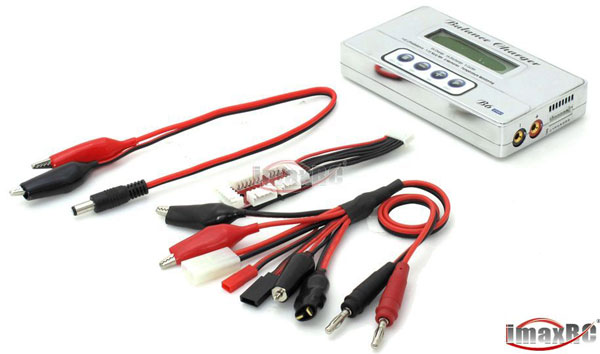

Adapter (1-6S), Multi- Ladekabel mit Tamiya, Krokodilklemmen, BEC, JR, DEANS,
Glühkerzen Anschluss
Features
imaxRC B6 Pro multi-functional balance charge is a rapid charger with a high
performance MCU.
Optimized user interface
When charging or discharging, B6 Pro has an “AUTO” function that
sets the feeding current automatically. Especially for Lithium batteries,
it can prevent the over-charging that can lead to an explosion by user’s
fault. Every program in the unit is controlled with mutual links and communication
for every possible error for maximum safety. These can be set at user’s
option.
Special recharge plugs port for receiver, transmitter and igniter charger.
And for frequently used charger port such as multi purpose crocodile pin etc.
It provides most convenient balance port for Lithium batteries, with separated
2,3,4,5,6 charge port, and external reverse connector.
High-power and high-performance circuit
B6 Pro employs the circuit that has maximum output power of 50W. As a result
it can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium
batteries with maximum current of 5.0A. Furthermore the cooling system is
so efficient that can hold such a power without any trouble of running the
CPU or the operating program.
Individual voltage balance for Lithium batteries inside
B6 Pro has an individual-cell-voltage balancer inside. This does not require
any extra balancer when charging Lithium batteries (Lilo/LiPo/LiFe) for cell
voltage balancing.
Balance individual cells on discharge
B6 Pro also can monitor and balance individual cells of the Lithium battery
pack during the discharge progress. If the voltage of any one cell varies
abnormally, the process will be stopped with the error message.
Suitable for various types of Lithium batteries
B6 Pro can accept three types of Lithium batteries-Lilo, LiPo and LiFe. They
have different characteristics by their chemistry. You can select any one
of them that you are going to process before the job. For their specifications,
refer “Warnings and safety notes” section.
Lithium battery “Fast” and “Storage” mode
You can charge Lithium battery for special purposes. “Fast” charge
reduces the charging time of Lithium battery and “Storage” mode
controls the final voltage of the battery to be suit for long time storage.
Maximum safety
Delta-peak sensitivity: the automatic charge termination program works on
the principle of the Delta-peak voltage detection.
Auto-charge current linit: when charging Nicd or NiMH at “AUTO”
current mode, you can set the upper limit of charge current to avoid from
high current charging. This is very useful when charging the low impedance
and small capacity NiMH battery in “AUTO” mode.
Capacity limit: the charging capacity always calculated by multiple of the
charging current and time. If the charging capacity exceeds the limit the
process will be terminated automatically when you set the maximum value.
Temperature limit: the temperature of the battery on charging will rise by
its internal chemical reaction. If you set the limit of temperature the process
will be expired forcibly when the limit has reached.
Processing time limit: you can also restrain the maximum process time to prevent
from any possible defect.
Input power monitor: to protect the car battery using as input power from
being damaged the voltage of it always monitored. If it drops below the lower
limit the process will be ended automatically.
Data store/load
For users convenience it can store maximum 10 data of different batteries.
You can establish the data contains program setting of the battery to charge
or discharge continually. These data can be called out at any time you need
and the process can be executed without program setting.
Cyclic charging/discharging
Perform 1 to 5 of charge/discharge or discharge/charge continually for battery
refreshing and balancing.
PC based analysis using USB communication
For technical expert, B6 Pro offers PC based program can analysis the characteristic
of the battery by USB adaptor. It shows a graph of voltage, current, capacity
and temperature curves. It also shows the individual voltage of each cell
in the Lithium battery pack.(*PC analysis software and USB adaptor, link wire
are not included, sold separately.)
Multi-use wires
Five kinds of wires are provided with the B6 charger. You can charge and discharge
your battery easily with these wires.
B6 Pro Specification:
*Input voltage: DC 11V-18V or AC TO DC adaptor(AC110/240 to DC 15V/5A)
*Charge current:0.1-5A,0.1A step
*Discharge current:0.1-1A,0.1A step
*Nicd/NiMH Cells:1-15Cell
*Li-Ion/Li-Po/Li-Fe Cells:1-6Cell
*Lead-acid(Pb):2-20V
*Temperature sensor & USB enable
*Balance:2-6Cell
*Case: plastic
*Display: 16*2 character LCD
|
